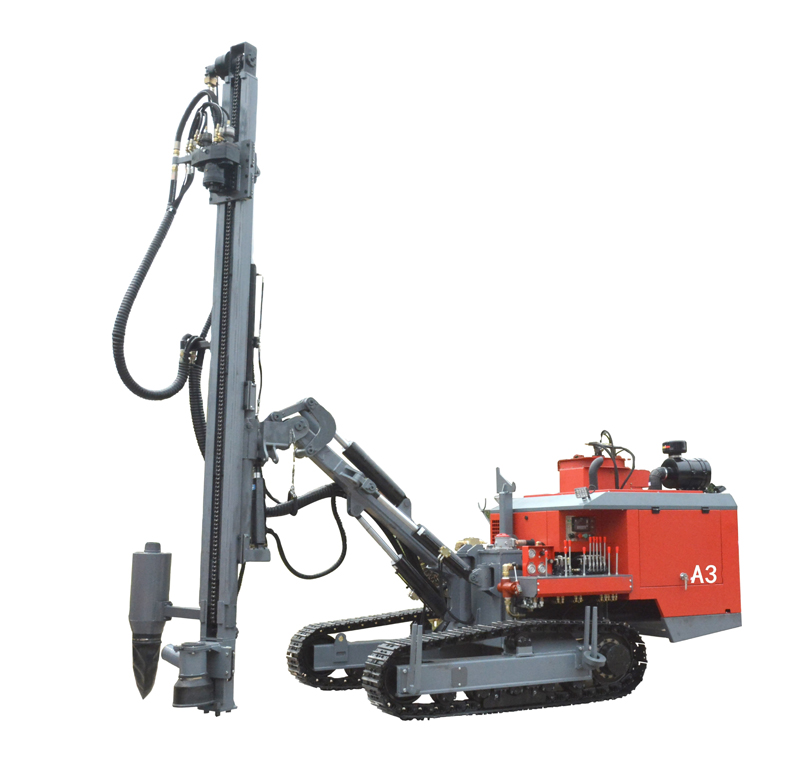

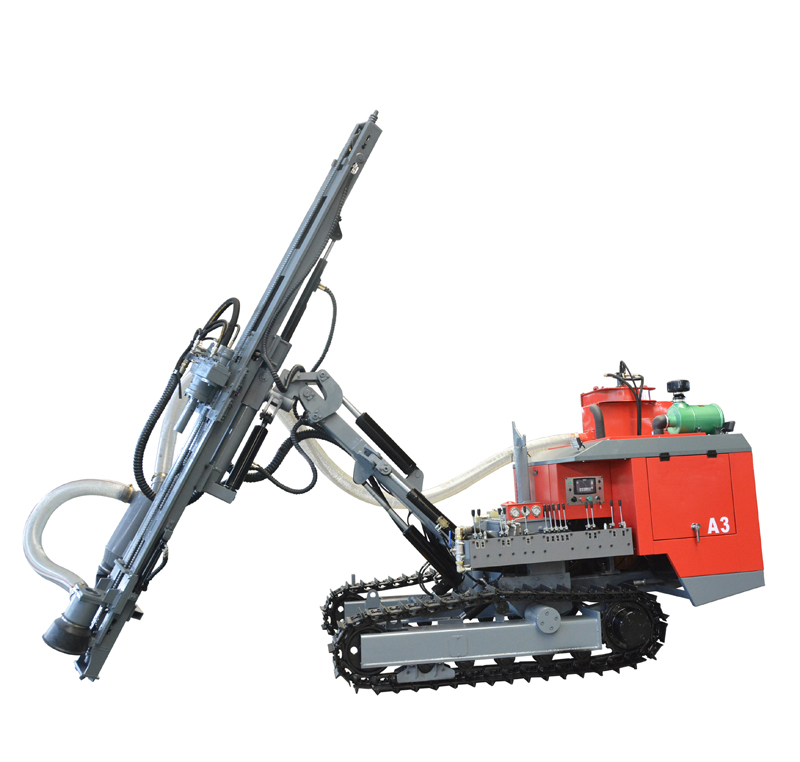

Hydraulic Crawler Mine Drilling Rig
Product Introduction

Introduction:
A series drilling rig is an upgraded drilling equipment based on the original.

This series of drilling rigs has been fully optimized and designed with compact structure, better overall performance, convenient mobile operation, energy saving, high efficiency, safety and environmental protection, stable performance, and easy maintenance.
It is mainly suitable for drilling blasting holes in open-air projects such as mining and quarrying, road construction, hydraulic and electric construction sites, and national defense projects.

Parameter Table:

Model
A3
Diesel engine
Yuchai
Engine power (kw)
58KW
Drilling hardness
F=6-20
Drilling diameter(mm)
90-115mm
Drilling Depth(M)
25m
Pipe rod(mm)
60*2m+60*3m
Suitable DTH hammer
3.5"
Rotary torque (Max.)
1600N.M
Rotary speed(rpm)
130rpm/min
Feed stroke(mm)
3400mm
Compensation length(mm)
900mm
Maximun push-pull force(kn)
cylinder chain
Method of Feed
Oil tanks & Chain
Travelling speed(km/h)
2.5km/h
Climbing capacity
30°
Ground clearance(mm)
370
Weight (kg)
4800
Dimensions(mm)
6000*2300*2600mm
Volume of diesel oil tank(L)
135
