Application fields:
Textile, spraying, medical, chemical, building materials, food processing, electronics, light industry,etc.
Advantages:
1) Germany imported main host, large rotor, low speed, high efficiency and high reliability.
2) Our unique dual-frequency design concept, to achieve effective energy saving and constant temperature, the frequency conversion tolerance range can reach 25%-100%.
3) Adopting the characteristics of stepless speed regulation of the frequency converter, through the PID regulator inside the controller or the frequency converter, it can quickly respond to pressure fluctuations and stabilize the air pressure. Compared with the upper and lower limit switch control of the power frequency operation, the air pressure is stable. Sexuality increased exponentially (±0.1 bar).
4) Acceleration/deceleration control soft start and stop, no starting peak current.
5) When the whole machine is running stably, the frequency is less than the frequency of the power frequency machine, and the noise and mechanical wear are greatly reduced, which prolongs the life of the whole machine.
6) Pre-set large volume front air filter to ensure that the inside of the machine runs in a cleaner environment, suitable for different environments.
Parameter Table
|
Model |

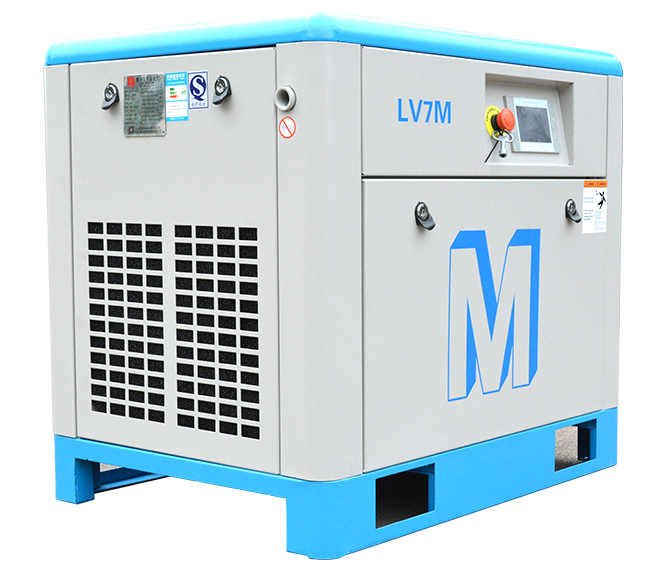

LV7M |
LV11M |
LV15M |
LV22M |

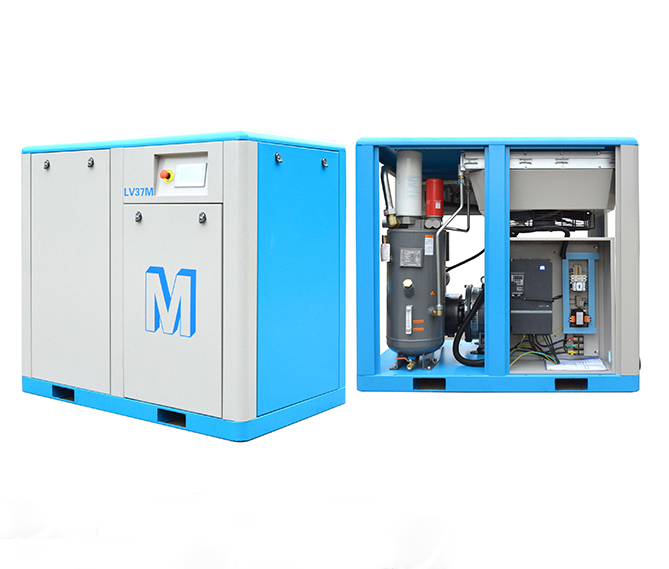

LV37M |
|
Displacement(m3/min) |
1.15 |
1.65 |
2.3 |
3.6 |
6.1 |
|
Working Pressure(bar) |
8 |
8 |
8 |
8 |
8 |
|
Compression stage |
1 |
1 |
1 |
1 |
1 |
|
Motor power(kw) |
7.5 |
11 |
15 |
22 |
37 |
|
Rotate speed(rpm) |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Voltage(V/P/Hz) |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
|
Start |
Soft start |
Soft start |
Soft start |
Soft start |
Soft start |
|
Transfer method |
Direct-driven |
Direct-driven |
Direct-driven |
Direct-driven |
Direct-driven |
|
Connector size |
G3/4" |
G3/4" |
G1" |
G1" |
G1-1/2" |
|
Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
Air Cooling |
|
Dimension(L*W*H)mm |
940*670*820 |
1170*690*940 |
1170*690*940 |
1250*770*1115 |
1400*880*1300 |
|
Weight(kg) |
220 |
350 |
380 |
580 |
780 |
