All-in-one Industrial Screw Air Compressor

Position: HOME > Products > Electric Air Compressor >

All-in-one Industrial Screw Air Compressor

All-in-one Industrial Screw Air Compressor

More Name:

Material:

Casting Process:

Heat Treatment:

Hardness:

Certification:

Chat Now Send Email

Product Introduction

The Air Compressor for Fiber Laser Cutting Machine

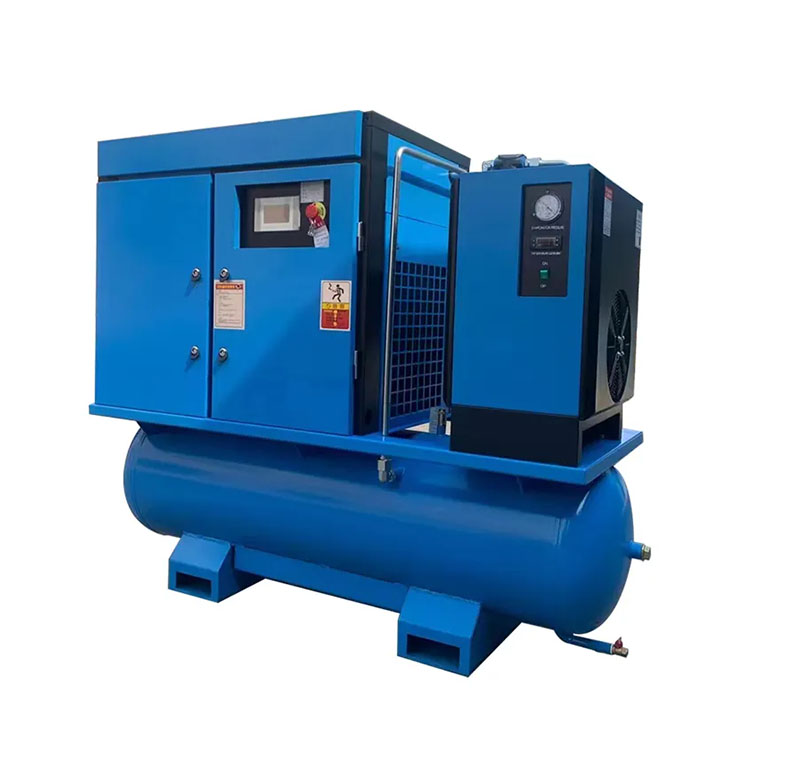

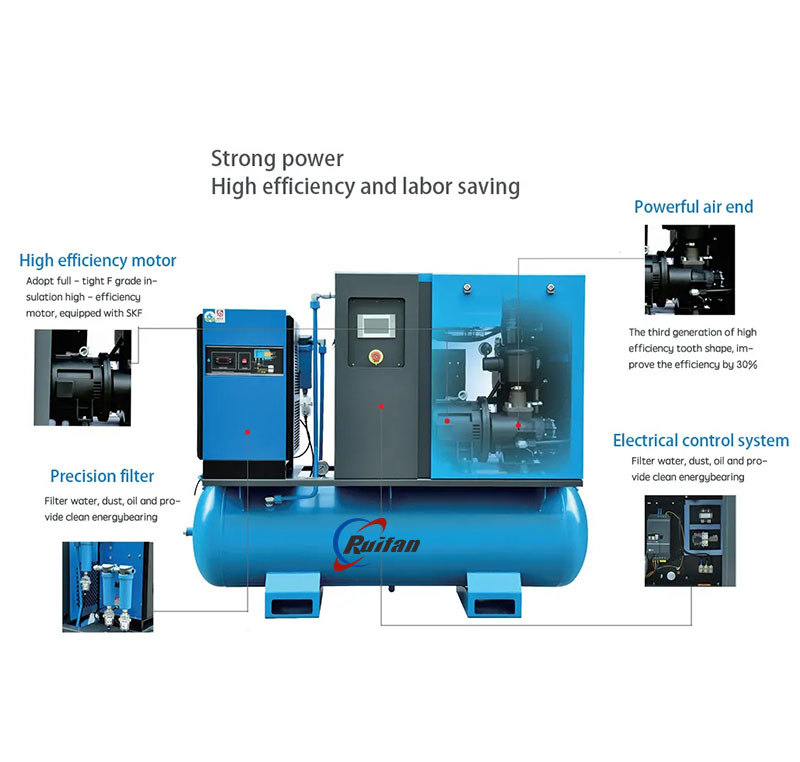

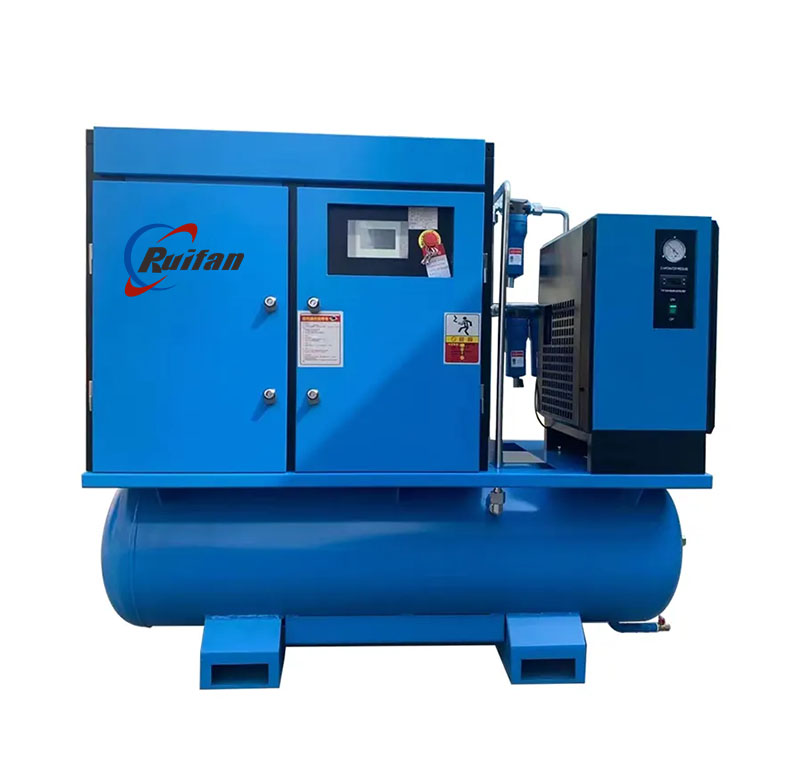

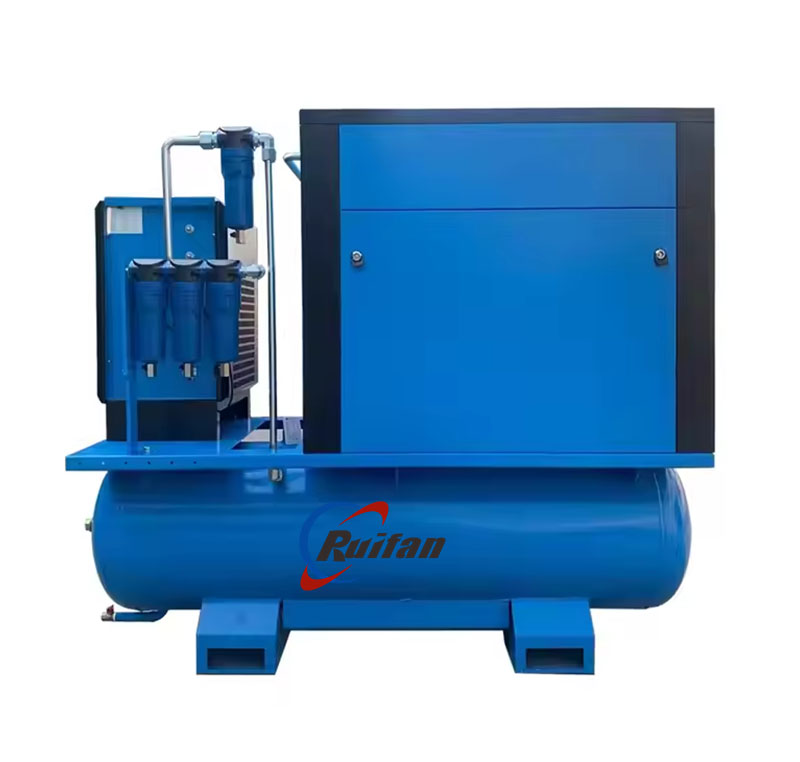

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.

Parameter:

Model/ Paremeter	Power (KW)	Working pressure （Mpa）	Exhaust volume (m³/min)	Gas storage tank volume (L)	Outlet pipe
LG-10A	7.5	0.8	1.1	250	R3/4(DN20)
		1.0	0.95
		1.2	0.8
LG-10AE		1.6	0.5
LG-15A	11	0.8	1.5	340	R3/4(DN20)
		1.0	1.3
		1.2	1.1
LG-15AE		1.6	0.85
LG-20A	15	0.8	2.3	340	R3/4(DN20)
		1.0	2.1
		1.2	1.72
LG-20AE		1.6	1.35
LG-30A	22	0.8	3.6	480	R1(DN25)
		1.0	3.2
		1.2	2.7
LG-30AE		1.6	1.8
