Introduction:

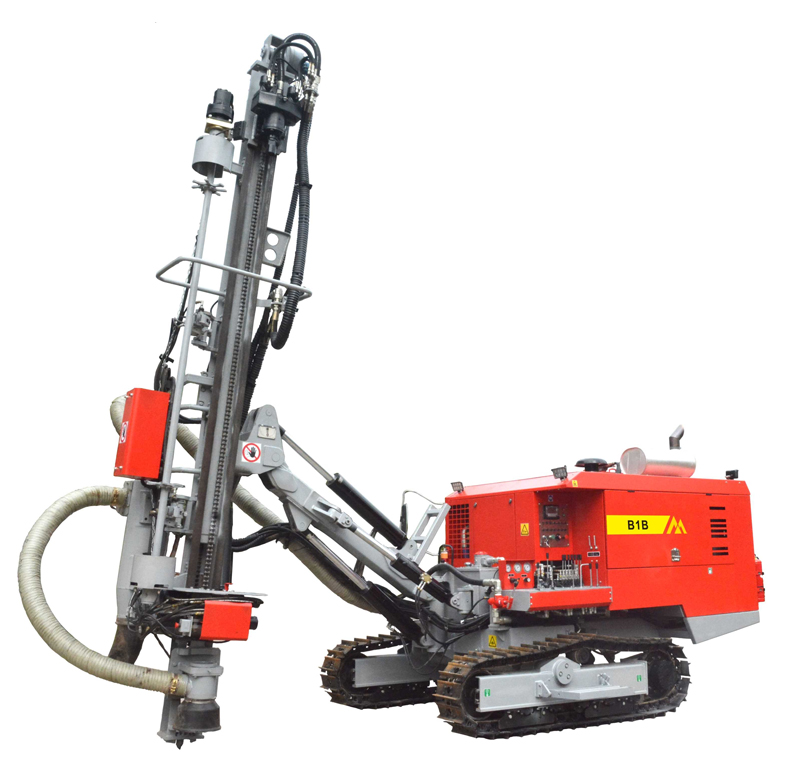

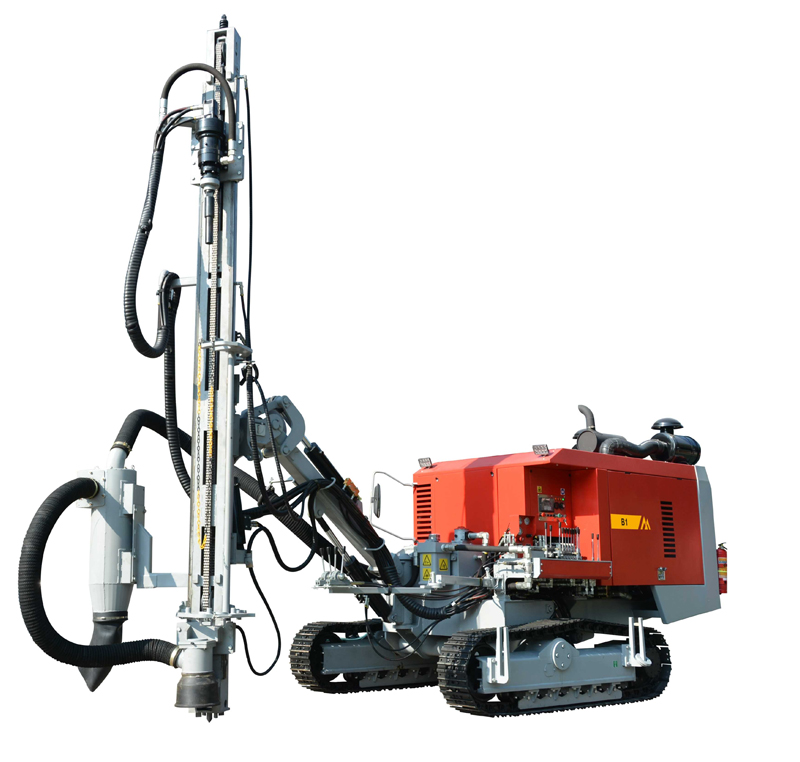

B1 integrated surface drilling rig integrates down-the-hole drilling rig and portable air compressor, with compact structure, flexible mobility, convenient displacement and transfer.
The drilling rig is equipped with two-stage dry dust collecting system, which has excellent dust removal effect; The drilling rig is widely applied in ore, limestone mining, road engineering construction and other open-pit projects.
Parameter Table:
Item
B1
Engine power（kw）
162
Drilling hardness
F=6-20
Drilling diameter（mm）
80-115
Drilling Depth(m)
21
Pipe rod(mm）
60*3000
Suitable DTH hammer
3.5inch
Working Pressure(bar)
16
Air consumption(m³)
13.5
Rotary torque (max.)
1500
Rotary speed(rpm)
0-120
Lifting force
30kN
Method of Feed
Oil cylinder+steel wire rope
Ground clearance(mm)
350
Weight（kg）
9000
Dimensions（mm）
7800×2400×2800
Volume of diesel oil tank
260L
