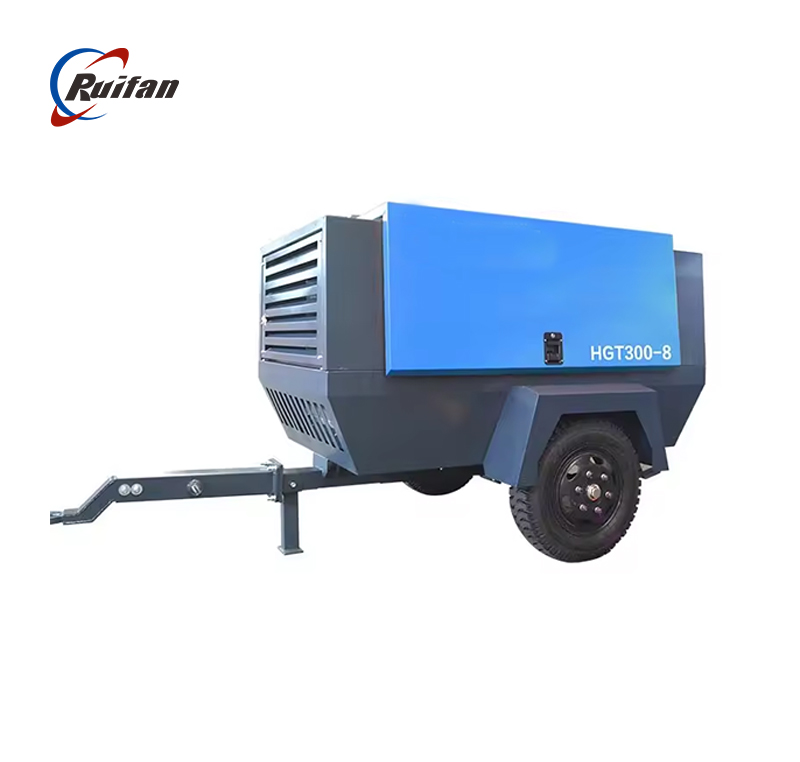

Production:
This seris machines have comprehensive performance is more widely used in high-efficiency mining quarry drilling, pipeline testing, water well drilling and related fields. For extreme conditions, the compressor is equipped with a heavy-duty fuel filter, a large-capacity battery, and an optional fuel-liquid heater in the cold zone. The cylinder is heated by a small cooling cycle of the diesel engine, so that you can start worry-free
Screw air compressor air end by GHH,Hanbell,Ningbo-Baosi,etc.
Parameter Table:
|
Item No
|
HGT300-10Y
|
HGT330-8Y
|
HGT400-14Y
|
|
Compressor
|
Air capacity (m3/min)
|
8
|
10
|
10
|
|
Working pressure (bar)
|
10
|
8
|
14
|
|
Compression level
|
single
|
|
Air tank capacity (L)
|
100
|
100
|
120
|
|
Oil capacity of air compressor (L)
|
48
|
48
|
54
|
|
Noise level dB(A)
|
75±3
|
75±3
|
76±3
|
|
Maximum ambient temperature ℃
|
50
|
50
|
50
|
|
Diesel engine
|
Emission standard
|
China standard III
|
|
Cylinders number
|
4
|
4
|
4
|
|
Rated output power (kw)
|
84
|
84
|
110
|
|
Engine full load speed (rpm)
|
2400
|
2400
|
2400
|
|
Engine no-load speed(rpm)
|
1400
|
1400
|
1400
|
|
Lubricating oil system capacity (L)
|
9
|
9
|
12
|
|
Coolant system capacity (L)
|
20
|
20
|
25
|
|
Diesel tank volume (L)
|
115
|
115
|
150
|
|
Overall
|
Engine battery
|
6-QW-105MF
|
6-QW-135MF
|
|
Outlet vent valve
|
1XG1.5” + 1XG1”
|
|
Overall dimensions LxWxH (mm)
|
2880X1740X1760
|
3860X1900X1960
|
|
Operating weight (kg)
|
1950
|
2450
|
|
Overall traveling mode
|
Two wheels portable
|
