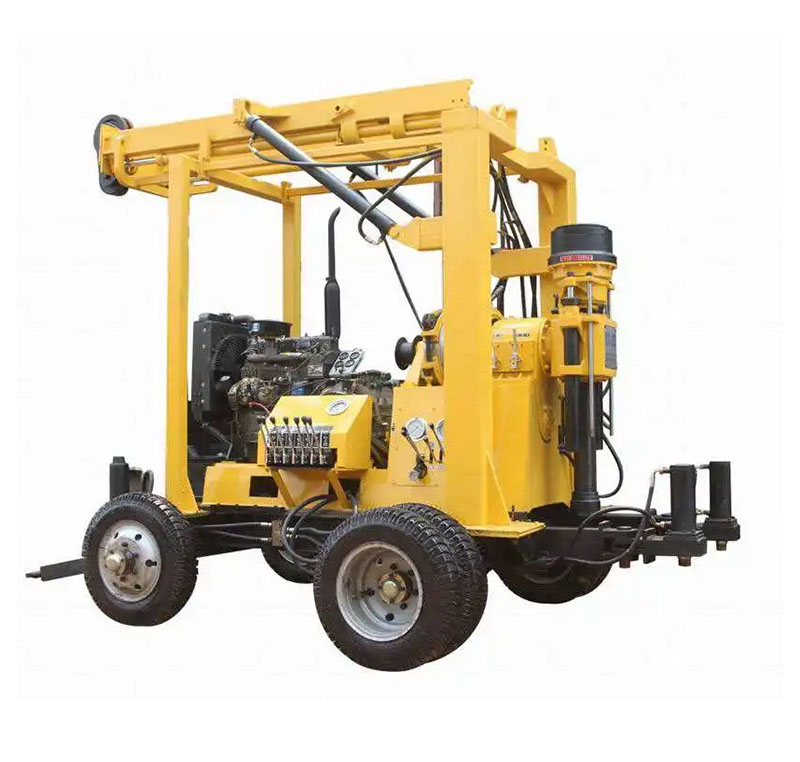

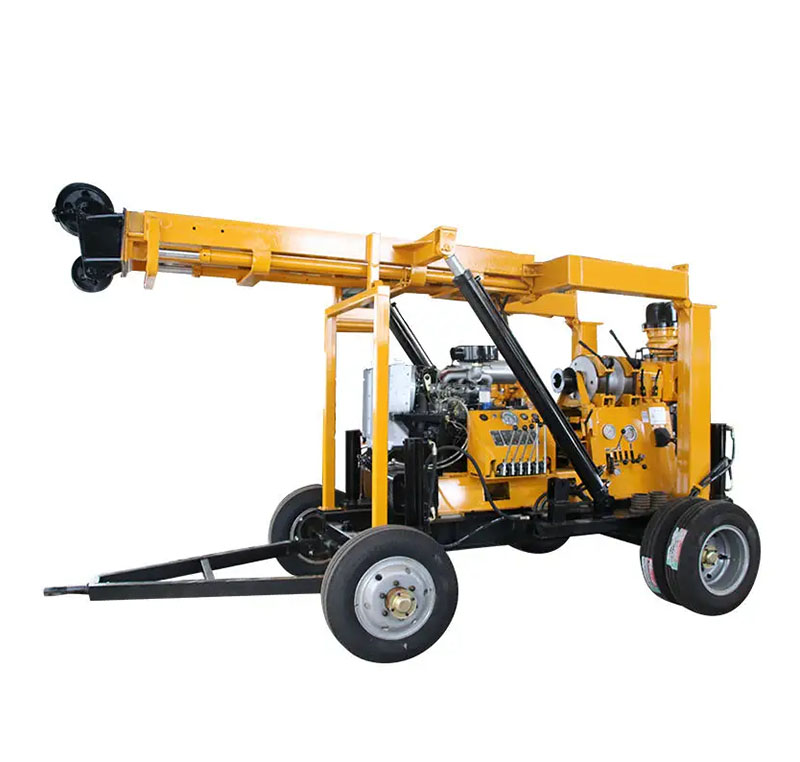

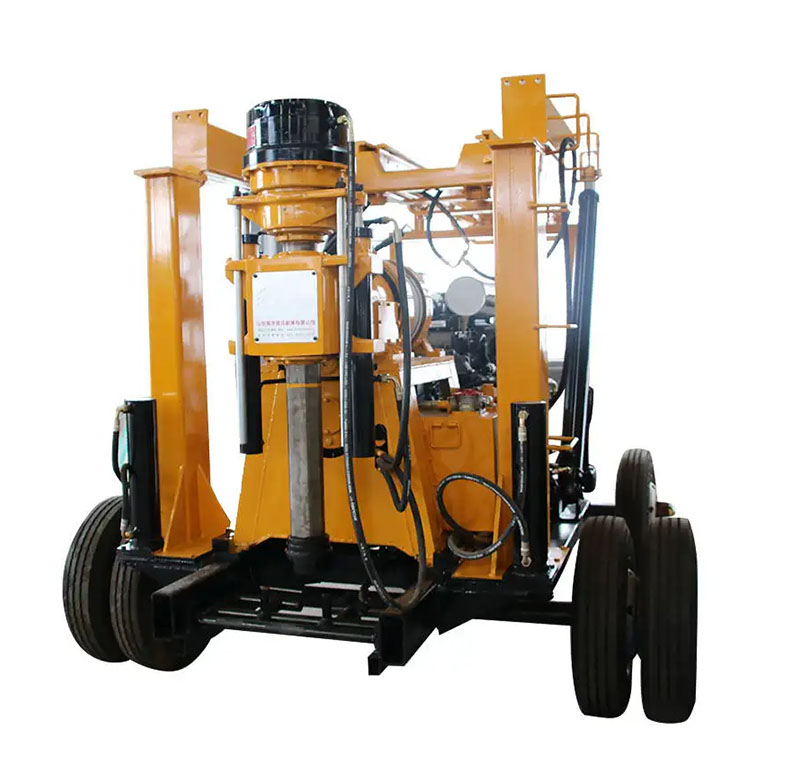

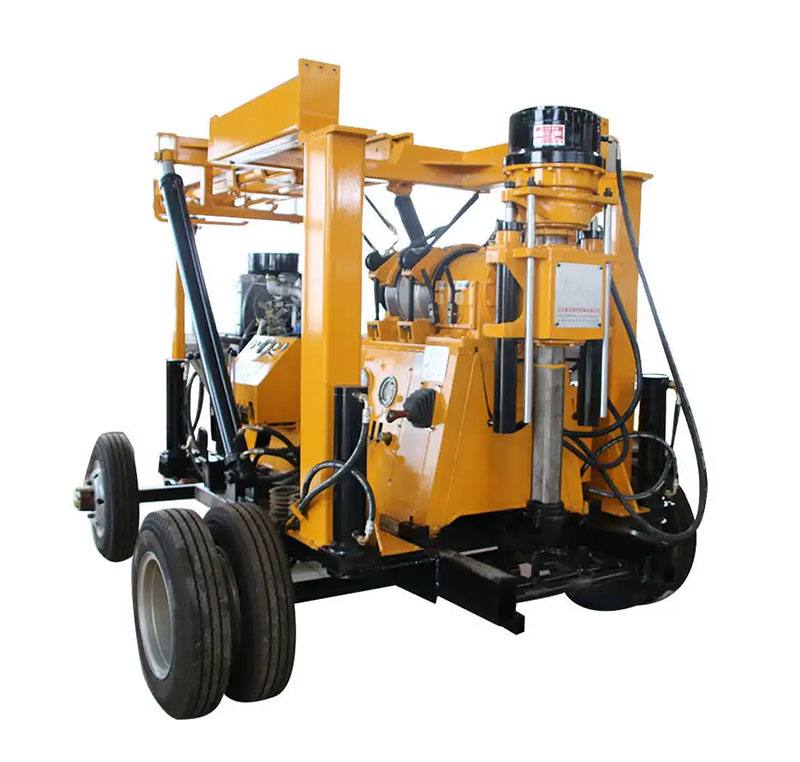

The drilling rig is equipped with lates MW525 type car transmission assembly, cloud 490 car powertrain, with 10 speed series and a
reasonable speed range, large torque, strong bearing capacity, enabling long-distance manipulation of speed, centralized operation
and convenient.
★ installed power, with 2 reverse speed, easy to handle accidents.
★ joystick focus, reasonable layout and compact, easy to operate, flexible and reliable.
★ with normally closed hydraulic chuck, easy and flexible operation.
★ Vertical shaft and winch can be achieved independent operation.
★ vertical shaft diameter, can be replaced with large six active drill pipe.
Parameter
|
|
|
Drilling depth
|
600m
|
|
Drilling diameter
|
75-400mm
|
|
Hole diameter
|
75-400mm
|
|
Final hole diameter
|
75mm
|
|
Drill pipe
|
Φ50-60-75mm
|
|
Drilling inclination
|
90°--65°
|
|
|
|
Vertical axis forward speed
|
32-1057r/min
|
|
Vertical axis reversal speed
|
29-137r/min
|
|
Vertical axis travel
|
600mm
|
|
Vertical shaft bore diameter
|
96mm
|
|
Vertical axis to enhance ability
|
60kN
|
|
|
|
Single rope to enhance speed
|
0.5-1.9m/s
|
|
Rope diameter
|
12.5mm
|
|
Single rope to enhance ability
|
30kN
|
|
Reel diameter
|
300mm
|
|
Reel capacity
|
65m
|
|
|
|
Horizontal three-cylinder BW-250 mud pump
|
BW-250 mud pump
|
|
Displacement
|
250L/min
|
|
Work pressure
|
80kgcm²
|
|
Intake pipe diameter
|
76mm
|
|
Outlet diameter
|
51mm
|
|
|
|
Double gear pump
|
CBF-F63/25
|
|
Pre-flow pressure
|
63L/min 20Mpa
|
|
Post-flow pressure
|
25L/min 20Mpa
|
|
|
|
Diesel engine
|
Cloud YN27 / power 39kw / 2400rpm
|
|
Motor
|
Y180L-4/22kW/1470rpm
|
|
|
|
Rig weight
|
2000KG
|
|
Dimensions
|
2500×900×1800mm
|
